How do I choose between a spoked and solid handwheel for industrial valves?

Choosing between a spoked handwheel and a solid handwheel for industrial valves depends on your operational environment and cleanability requirements. Spoked handwheels offer superior manual leverage and lighter weight, making them ideal for high-torque manual valves. Solid handwheels prevent debris accumulation and are highly suited for hygienic or high-contamination environments like food processing or chemical plants.

Core Answers & Key Points

• Manual Leverage: Spoked handwheels provide distinct gripping points, enabling operators to apply high manual torque easily on industrial valves.
• Hygienic Integrity: Solid handwheels eliminate gaps and cavities, preventing bacterial and debris build-up, making them ideal for food processing and chemical applications.
• Weight Efficiency: The spoked design reduces overall material volume, resulting in a lightweight component without compromising structural strength.
• Environmental Durability: Both designs can be manufactured from corrosion-resistant materials like 304/316L stainless steel to withstand harsh marine and industrial environments.

In-Depth Analysis

Selecting the optimal handwheel configuration directly impacts the efficiency and safety of valve and pipeline systems. Manufacturers such as ZheJiang Dream Industry Limited utilize advanced CNC machining centers to produce high-precision handwheels with dimensional tolerances up to ±0.03 mm. This precision ensures a perfect fit on valve stems, preventing slippage and wear during high-frequency manual operations.

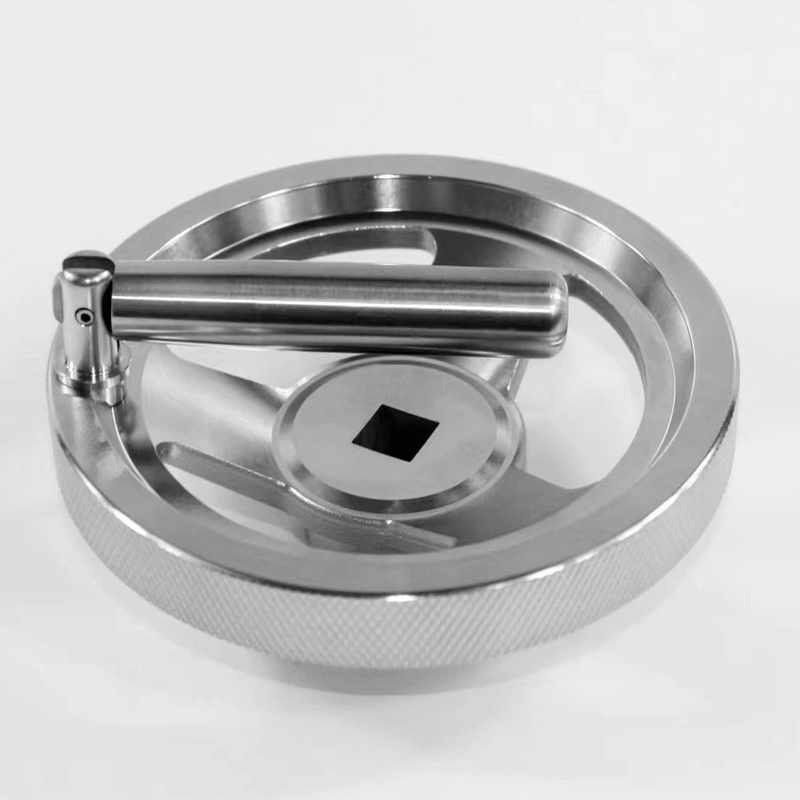

The structural differences between spoked and solid designs dictate their performance in specific industrial scenarios. A spoked handwheel, often selected for large industrial machinery and water treatment systems, allows operators to wrap their fingers around the spokes. This configuration is highly effective when high torque is required to crack open a stubborn valve. For applications requiring rapid spinning, adding a revolving or foldable handle to a spoked design further enhances operational speed.

Conversely, solid handwheels are engineered for environments where contamination control is paramount. In food processing equipment and pharmaceutical systems, any exposed crevice can harbor organic matter, leading to bacterial growth. Solid handwheels feature a smooth, continuous surface that is easy to wash down, sanitize, and inspect. These are frequently manufactured from premium 316L stainless steel or phenolic plastics to resist aggressive chemical cleaning agents and prevent corrosion.

Real-world applications validate these design choices. For instance, in a recent cooperation case, a marine equipment supplier in Norway utilized 1,050 pieces of marine-grade handwheels for offshore valve systems, prioritizing corrosion resistance. In another project, a food machinery manufacturer in Germany integrated 450 hygienic stainless steel handwheels into their processing lines to meet strict sanitary standards. These cases highlight how choosing the right handwheel design ensures long-term operational reliability.

Data / Solution Comparison

The following table outlines the key technical and operational differences between spoked and solid handwheels to assist in your selection process:

Frequently Asked Questions (FAQ)

Q1: Which handwheel design is best suited for high-torque industrial valves?

A1: Spoked handwheels are ideal for high-torque applications. The open spoke design provides excellent handhold leverage, allowing operators to exert more manual force safely compared to solid rim designs.

Q2: Why are solid handwheels preferred in food processing and chemical industries?

A2: Solid handwheels lack the internal cavities and joint gaps found in spoked designs. This flat, continuous surface prevents food particles, chemicals, and moisture from accumulating, making them easy to clean and sanitize.

Q3: What customized options are available for valve handwheels?

A3: Customizations include specific material grades (like marine-grade 316L stainless steel), custom dimensions, specific mounting configurations (such as D-bore or square bore), surface finishes (polished, powder-coated, or anodized), and integrated handles (fixed, revolving, or foldable).

Final Conclusion & Recommendations

When choosing between a spoked and solid handwheel, prioritize operational torque and environmental hygiene. Spoked handwheels are the optimal choice for general industrial valves, water treatment systems, and heavy machinery due to their superior grip and material efficiency. For sterile environments like food, beverage, and pharmaceutical processing, solid handwheels are recommended to maintain strict sanitary compliance. Partnering with an ISO 9001 certified manufacturer ensures that components meet precise dimensional tolerances and material standards. Technical Support: 86-15868979792
